Manual Apocalypse AAB-500.1D Atom
Note: AAB and AAP series are not working at 0.5ohm

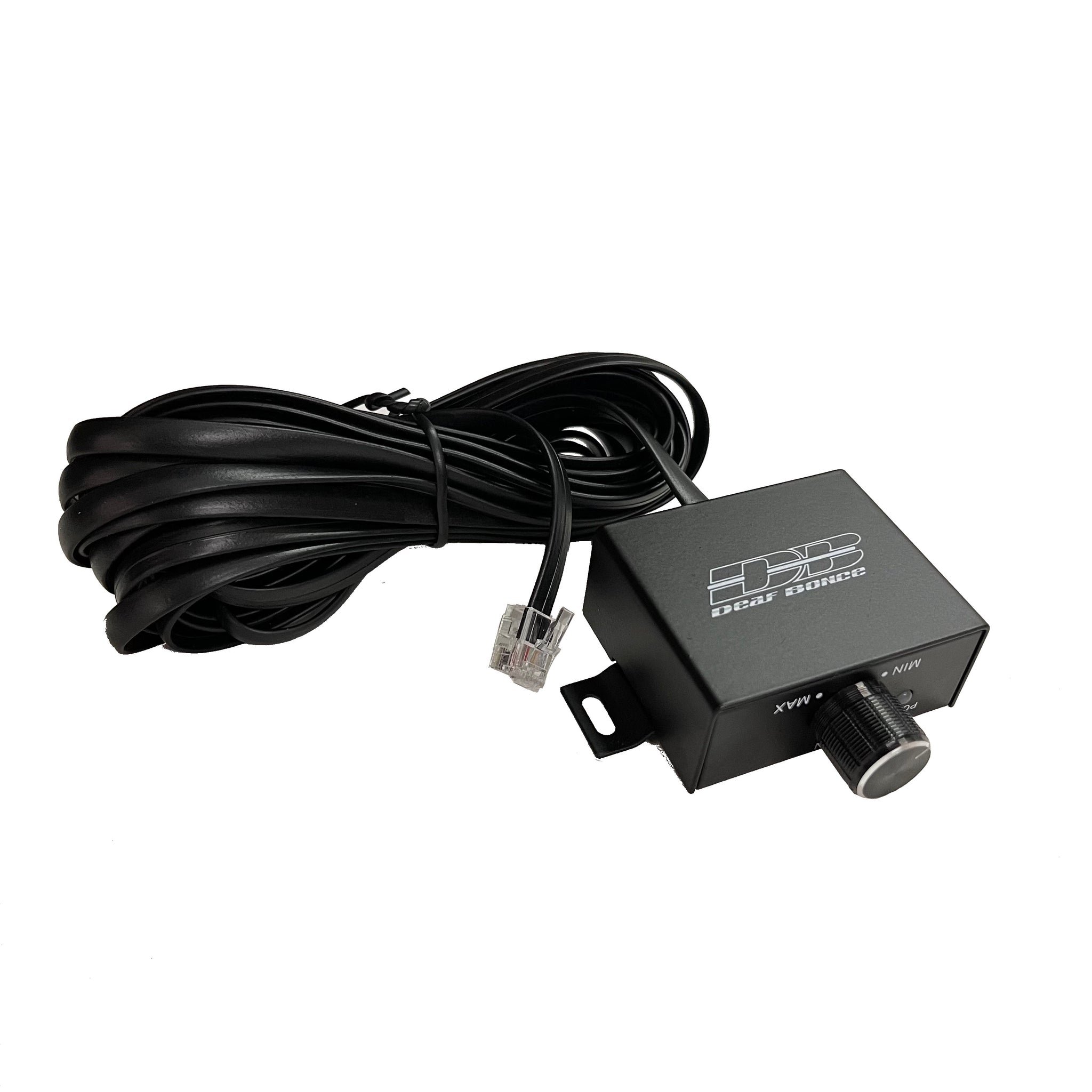

Bass knob included
Specifications
Model |
AAB-500.1D Atom |
Class |
D |
Number of the channels |
1 |
Frequency response |
15-180 Hz |
1 Ohm RMS Power (14.4 V) |
568 W |
1 Ohm RMS Power (12 V) |
502 W |
2 Ohm RMS Power (14.4 V) |
331 W |
4 Ohm RMS Power (14.4 V) |
205 W |
Minimum permissible load on the channel |
1 Ohm |
Input SPL |
0.2 - 6 V |
Low pass filter |
35-180 Hz |
Crossover |
12 dB/Oct |
Subsonic filter |
15-50 Hz |
Input terminal |
4 Ga |
Output terminal |
8 Ga |
Damping factor |
≥ 210 |
Working voltage |
9 - 15 V |
Signal-to-noise ratio |
≥ 100 dB |
Size (WxLxH) |
4.92 x 6.30 x 2.50 inch |
