Model |

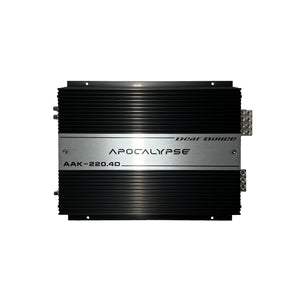

AAK-220.4D |
Class |
D |
Number of the channels |
4 |
Frequency response |
20 - 20000 Hz |
Power RMS 4 Ohm* (W) |
250 x 4 |
Power RMS 2 Ohm* (W) |
380 x 4 |
Power RMS 4 Ohm bridged mode* (W) |
800 x 2 |
|
|

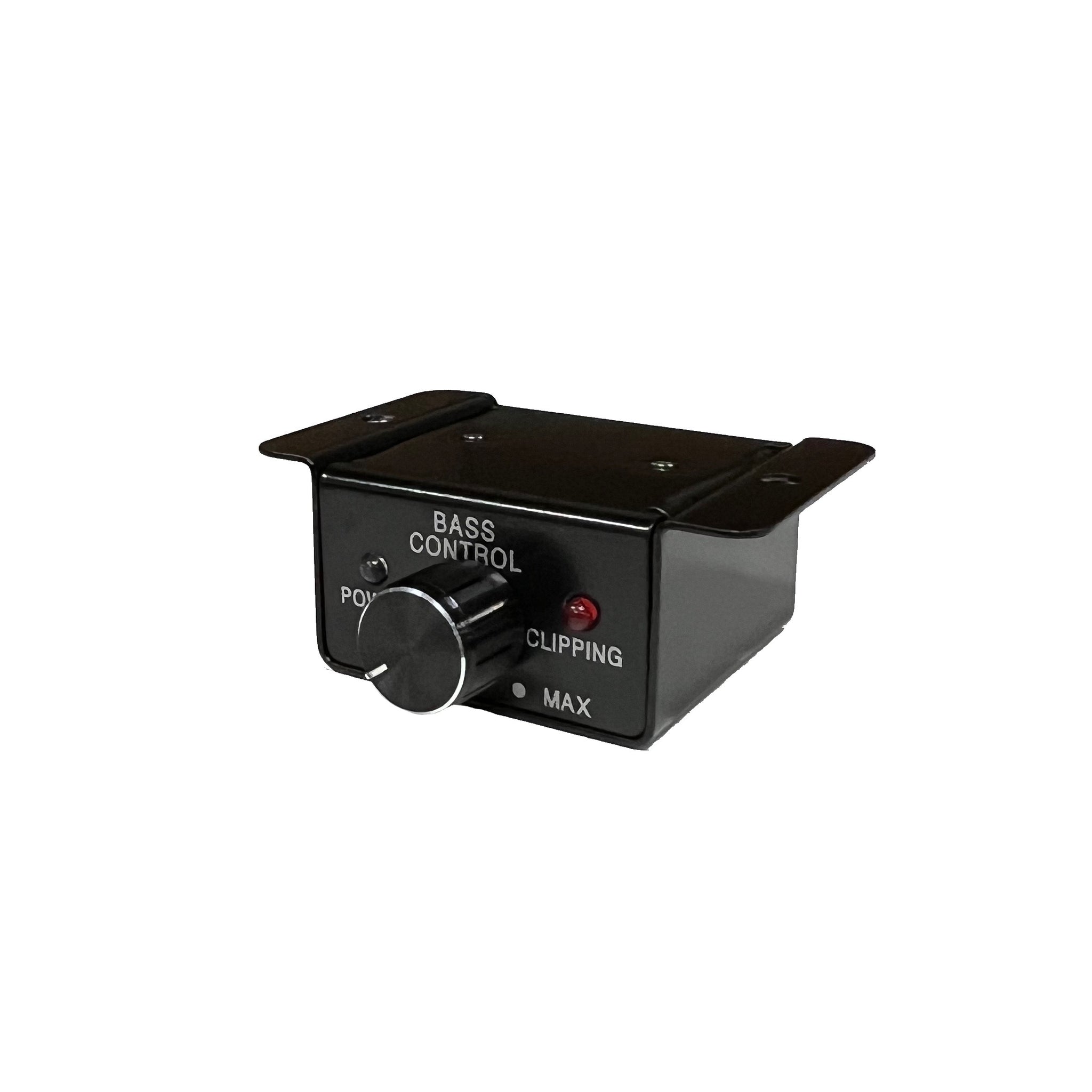

Bass level adjustment (dB at 45 Hz) |
0-18 |
Minimum permissible load on the channel |
2 Ohm |
Minimum permissible load in a bridge connection |
4 Ohm |
Input SPL |
0.2 - 6 V |
Low pass filter |
x1-50 - 800, x10-500-8 000 |
High pass filter |
x1-20 - 800, x10-200-8 000 |
LPF and HPF simultaneous operation |
True |
Crossover |
12 dB/Oct |
Input terminal |
4 Ga |
Output terminal |
8 Ga |
Damping factor |
≥ 100 |
|
|
Working voltage |
9 - 15 V |
Phase regulation |
0 - 180° |
Signal-to-noise ratio |
≥ 90 dB |
Size (W×L×H) |
11 81 x 10 54 inch |
|
|
