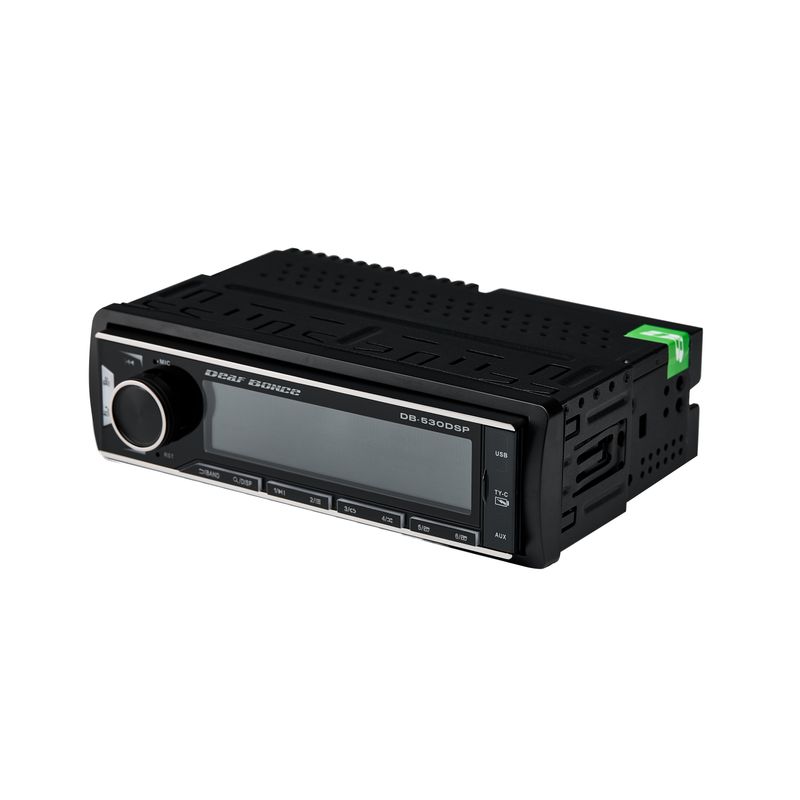

Deaf Bonce DB-530DSP

7. SPECIFICATIONS

KEY FEATURES

Power RMS 4 Ohm

4x25 W

Radio tuner type

AM, FM, RDS

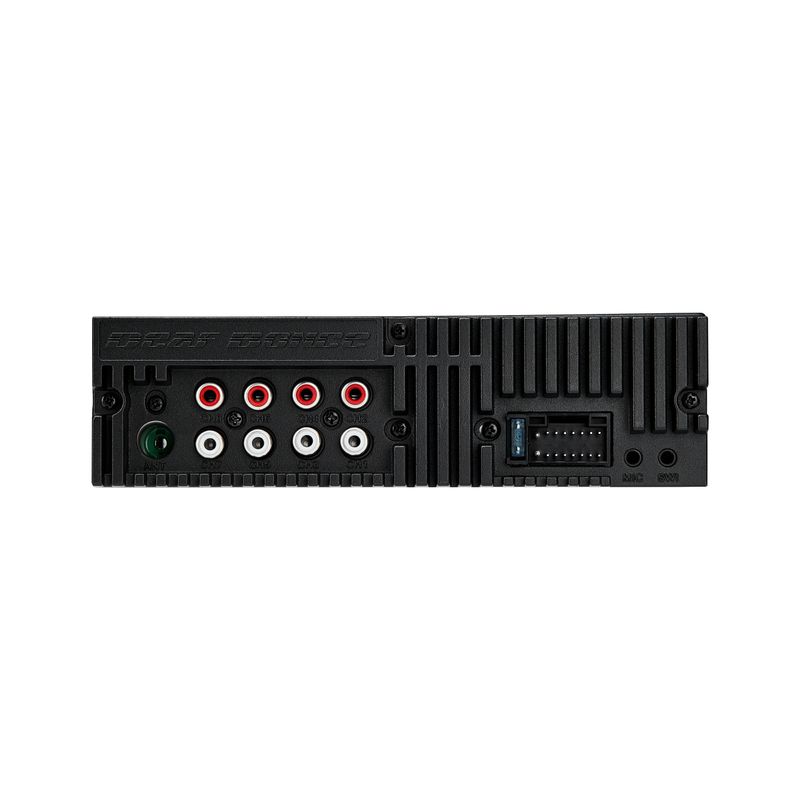

Number of RCA outputs

8

Number of radio stations

18 FM, 12 AM

AUX input

3.5 mm mini-jack

Card reader

ME. 20 Sonly for models DB 510DSP and

USB ports

USB Type-A + USB charging port (5V, 1A)

Supported audio playback formats

MP3, WMA, AAC, FLAC, WAV

Head Unit steering wheel control buttons learning (SWC)

Yes

Hands-Free support

Yes

CONNECTION

Working voltage

10-17 V

Input terminal connection

16 AWG

Output terminal connection

20 AWG

Automatic turn on/off

ACC

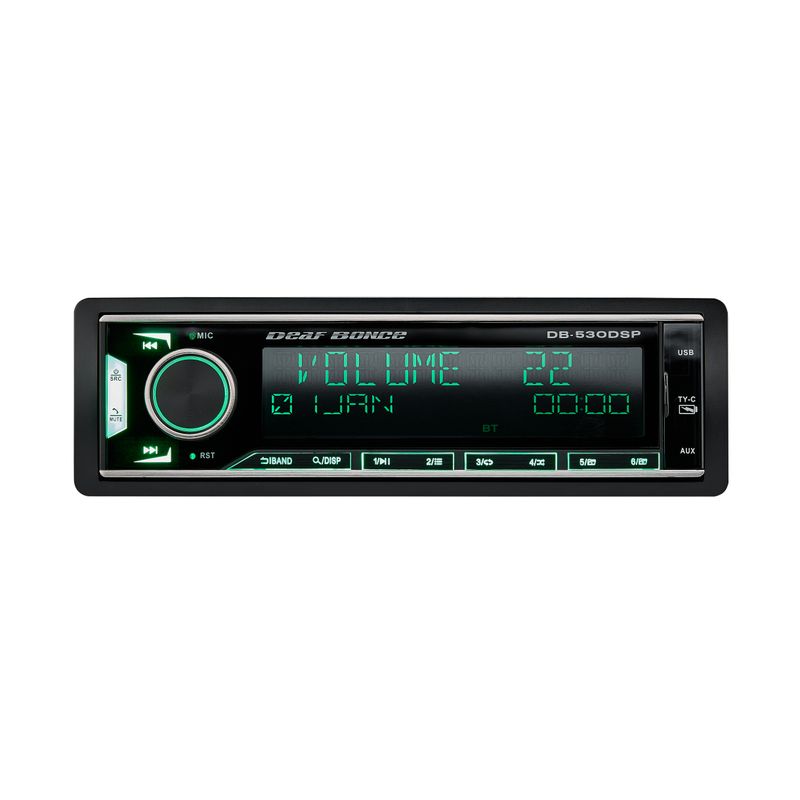

Front panel backlight type

ARGB, 7 colors

Quantity of backlight zones

2

Information screen type

VA LCD

Integrated fuse

15A

AUDIO

Built in amplifier class                         AB

Number of RCA outputs

8

Number of full range RCA outputs

6

Number of subwoofer RCA outputs

2

RCA output voltage

up to 4.5 V

Bluetooth profile

A2DP

Frequency response for full range channels

20 Hz- 20 kHz

Frequency response for subwoofer channels

20 Hz- 800 Hz

Signal to noise ratio

≥80 dB

Minimum permissible load impedance on the single channel

4 Ohm

CROSSOVER

Filter types for full range channels

LPF, HPF

Filter types for subwoofer channels

LPF, HPF

Crossover frequency for full range channels

30 H2 - 12.5 KHZ

Crossover frequency for subwoofer channels

20 Hz- 800 Hz

Filter slope for full range channels

6-24 dB/Oct

Filter slope for subwoofer channels

6-24 dB/Oct

TIME ALIGNMENT

Time alignment, distance

0 - 642 cm / 0 - 240 inch

Time alignment, delay

0 - 18 ms

Time alignment, step

0.1 ms, 3 cm, 1 inch

SIZE

Size (LxWxH)

188x58x138 mm

Size (LxWxH)|

7.4x2.28x5.43 inch
