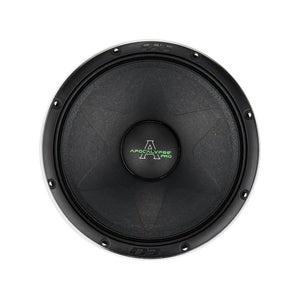

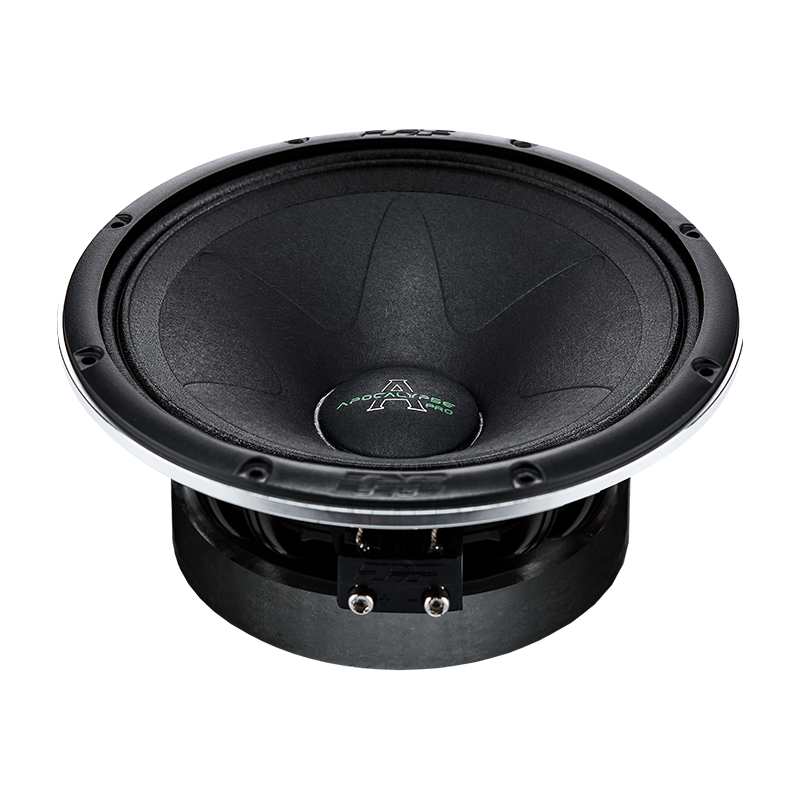

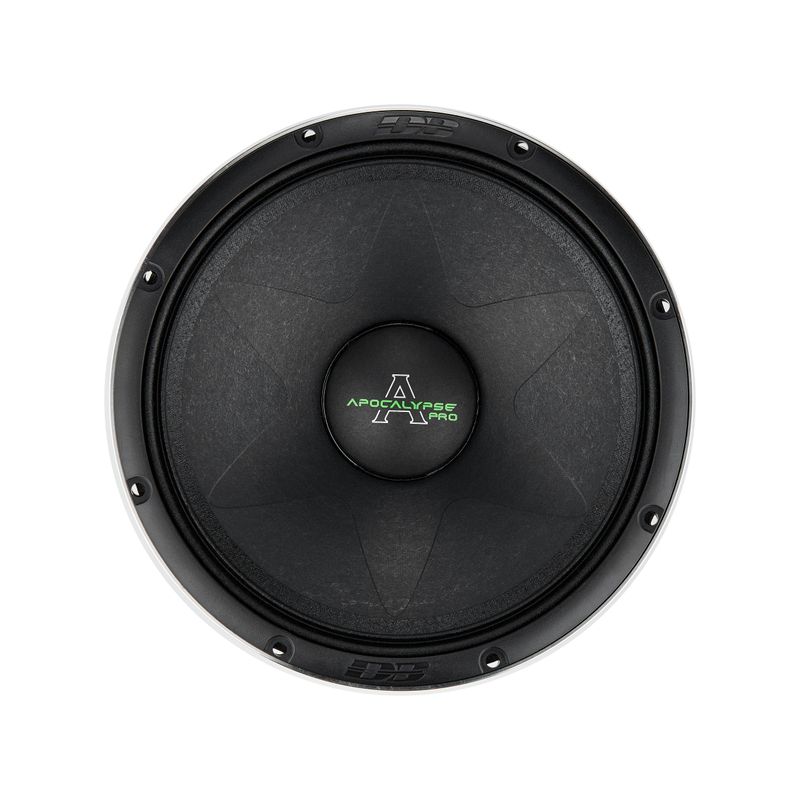

Apocalypse AP-M61AC PRO | Mid-Range Speakers (Pair)

More pictures will be added soon

Manual AP-M61AC PRO

M61AC PRO Midrange Speaker Specifications

• Type: Midrange

• Size: 6.5"

• Frequency Response: 160 – 12,500 Hz

• Package Quantity: Pair

Power Handling:

• RMS Power: 180 W

• Max Power: 360 W

Build & Materials:

• Voice Coil Size: 1.50"

• Voice Coil Wire: Copper-Clad Aluminum (CCAW)

• Cone Material: Pressed Paper

• Surround Material: Cloth

• Magnet Type: Ferrite

• Frame: Aluminum

Performance Characteristics:

• Impedance: 4 Ohm

• Sensitivity (SPL): 101.9 dB

• Resonance Frequency (Fs): 158 Hz

• Total Q Factor (Qts): 0.41

• BL (Magnetic Force): 8.40

• Vas (Equivalent Air Volume): 4.50 L

Mounting Dimensions:

• Mounting Depth: 75.0 mm

• Cut-Out Diameter: 156.0 mm

Shipping Weight:

• Gross Weight: 5.35 kg
